Customize appearance of the front end

Below we show a few examples of how to customize the Gen3 Data Portal.

For a more technical and complete background, see portal configurations on GitHub.

Login Page

Login Image

Customize the image that appears on the Login Page with a vector graphic (eg. *.svg) of your choice.

• Review code to include the path-to-image in gitops.json.

Information on Login and Commons

Customize the text that appears on the Login Page by specifying title, description, subtitle, contact, or email.

• Review the code to edit title, subtitle, text, contact, and email.

Landing Page

Information on Commons

Customize the name of the Data Commons, the info text, and the button below that appear on the top left side of the Landing Page after logging in.

• Review the code to edit heading, text, and link.

Summary Statistics

Customize the summary statistics that appear on the top right side of the Landing Page after logging in. The attributes are graphQL fields, which must be in the dictionary, configured in the etlMapping.yaml, and populated with data on the backend.

• Review the code to edit graphQL queries.
• Review the code to edit the graphQl queries after being logged in.

Cards

Customize the cards that appear on the bottom of the Landing Page after logging in.

• Review the code to edit name, icons, body, link, and label of the cards.
• Adding a new icon requires saving the icon in this repository and in this file.

Navigation Items

Customize the icons, link, and names that appear on the Data Commons navigation bar. The "tooltip" shows text upon hovering over the icon.

• [Review the code to edit icon, link, color, tooltip, and name of the navigation items][gitops.json navbar].
• Adding a new icon requires saving the icon in this repository and [in this file][icons inex].

Data Commons or Mesh Title

Customize the title that appears in the top left corner such as for the Biomedical Research Hub.

• Review the code to edit the title of the Data Commons.

Top Bar

Customize the top bar that appears in the top right corner.

• Review the code to edit the top bar (link, name, icon, dropdown) of the Data Commons.

Color Theme

Customize the color theme for buttons, top navigation bar, and any types of charts on the Exploration and Landing Page.

• Review the code to edit the 9 colors of a Data Commons.

Footer Logo

Customize the logos in the Footer.

• Review the code to edit the source, link, and name of logos in the footer of a Data Commons.

Notebook Browser

Customize the Notebook Browser page to preview Jupyter Notebooks by adding images, titles, descriptions, and links to the Jupyter Notebook.

• Review the code to edit the title, description, link, and imageURL.

DICOM Viewer integration

In the Medical Imaging Data Resource Commons (MIDRC) we have integrated a DICOM Viewer into the Data Commons. We have included some details below on the integration.

Overview

We use the Ohif viewer for the frontend and the Orthanc server for the backend.

• Ohif viewer fork(https://github.com/uc-cdis/viewers)
  • The viewer is accessible in Gen3 at <Gen3 portal hostname>/ohif-viewer, so the PUBLIC_URL environment variable must be set to /ohif-viewer (a3f7848). It can only be set at build time, so the only option was to fork the repository and build the image ourselves (5c5c48a).
  • We use Ohif viewer v3.
• Orthanc server fork
  • The Orthanc server supports custom authorization filters. We forked the repository so we could add a filter that communicates with the Gen3 policy engine to check user authorization.
  • Orthanc supports various storage options. We are currently using PostgreSQL and investigating using AWS S3. Note that one of the two will likely not be maintained anymore in the future.

Deployment

Services

Add the DICOM viewer and one of the two DICOM server services to your deployment manifest:

Text Only

"ohif-viewer": "707767160287.dkr.ecr.us-east-1.amazonaws.com/gen3/ohif-viewer:gen3-v3.8.0",
"dicom-server": "707767160287.dkr.ecr.us-east-1.amazonaws.com/gen3/gen3-orthanc:gen3-0.1.2",
"orthanc": "docker.io/osimis/orthanc:master",

• ohif-viewer is the frontend
• dicom-server is the backend set up to use PostgreSQL
• orthanc is the backend set up to use AWS S3

If your Gen3 deployment uses cloud-automation, you can then set up the services by running:

• gen3 kube-setup-dicom to set up and deploy ohif-viewer and/or orthanc (if you have chosen this server).
• gen3 kube-setup-dicom-server to set up and deploy dicom-server (do not run this if you have not chosen this server).

The Ohif viewer configuration may need to be updated as follows:

• Edit ~/Gen3Secrets/g3auto/orthanc-s3/app-config.js
• Make sure wadoUriRoot is set to "/dicom-server/wado" if using dicom-server, or "/orthanc/wado" if using orthanc.
• Similarly, set both qidoRoot and wadoRoot to "/dicom-server/dicom-web" if using dicom-server, or "/orthanc/dicom-web" if using orthanc.
• After making updates, run kubectl delete secret orthanc-s3-g3auto && gen3 kube-setup-dicom

Once the services are deployed and the access configured, after logging in as an authorized user, you should be able to access the services at:

• ohif viewer: <Gen3 portal hostname>/ohif-viewer/viewer?StudyInstanceUIDs=<DICOM study ID>
• dicom-server: <Gen3 portal hostname>/dicom-server/app/explorer.html
• orthanc: <Gen3 portal hostname>/orthanc/app/explorer.html

Authorization

See this doc for details on setting up authorization through a user.yaml file.

• For ohif-viewer and dicom-server:
• End users need the following access to view files in the DICOM viewer:
  • service: "dicom-viewer"
  • method: "read"
  • resource: "/services/dicom-viewer/studies/\<DICOM study ID>"
  • The recommended setup is to create a policy with access to all DICOM studies (resource "/services/dicom-viewer/studies") and grant it to all users, or to all logged in users.
• Administrators need the following access to interact with the server API (such as to submit files):
  • service: "dicom-viewer"
  • method: "create"
  • resource: "/services/dicom-viewer"
• For orthanc: in addition to the above, add the following:
• End users:
  • service: "orthanc"
  • method: "read"
  • resource: "/services/orthanc/studies" (note that per-study access is not supported at the moment)
• Administrators:
  • service: "orthanc"
  • method: "create"
  • resource: "/services/orthanc"
• This may change in the future.

Portal explorer integration

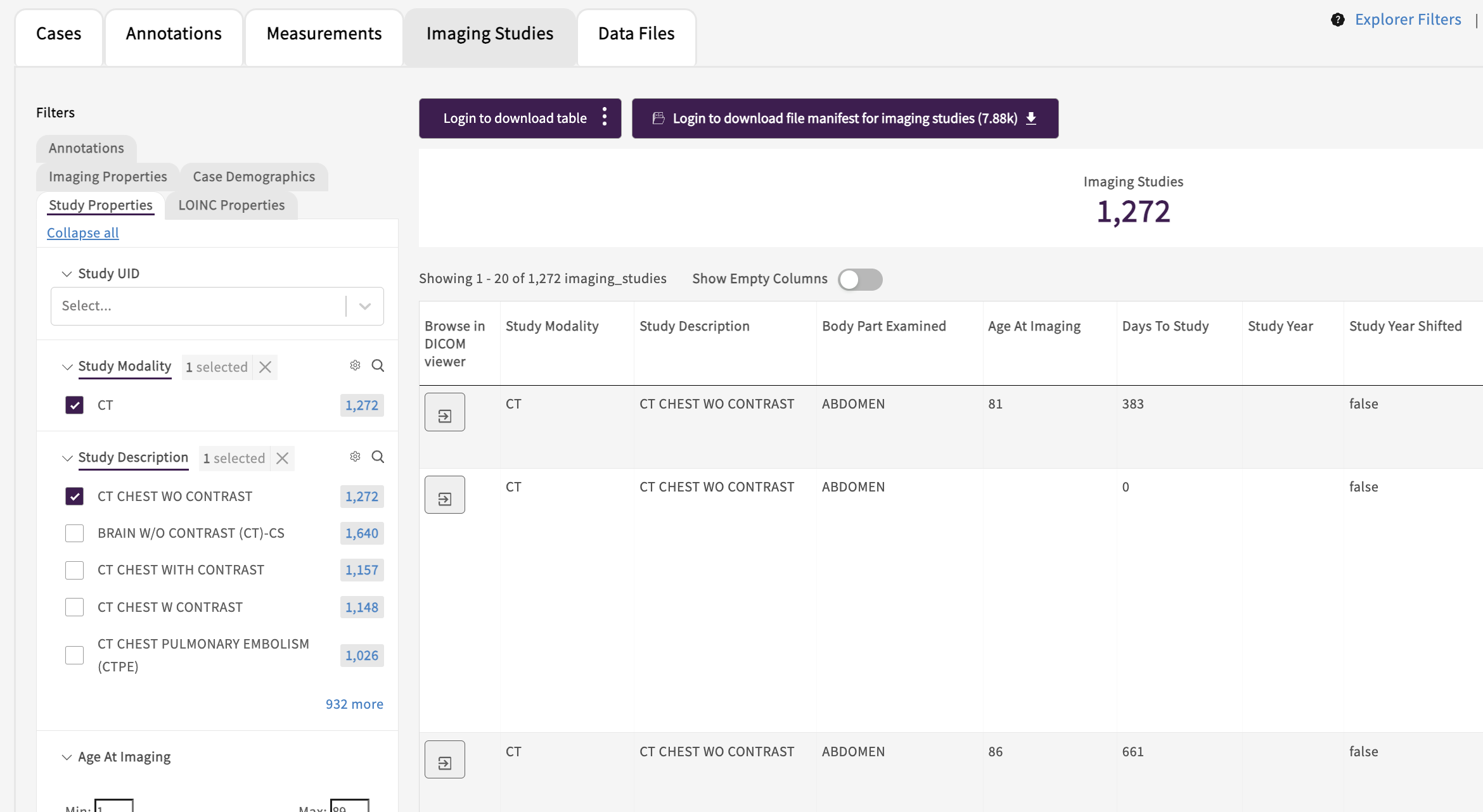

The explorer page of the portal can be configured to link to the DICOM viewer. The elastic search documents must have a field corresponding to the DICOM study ID.

Configure your explorer page tab as follows:

Text Only

"explorerConfig": [
    {
      "tabTitle": "Imaging Studies",
      "table": {
        "enabled": true,
        "fields": [...],
        "dicomViewerId": "dicom_study_id",
        "dicomViewerUrl": "ohif-viewer",
        "dicomServerURL": "dicom-server",
        "linkFields": [
          "dicom_study_id"
        ]
      }
    }
]

• dicomViewerId: (optional) name of the field that corresponds to the DICOM study ID.
• dicomViewerUrl: (optional; default: "dicom-viewer") to override the path to the DICOM viewer.
  • Set to "ohif-viewer" if you're using the ohif-viewer service.
• dicomServerURL: (optional; default: "dicom-server") to override the path to the DICOM server.
  • Set to "dicom-server" if you're using the dicom-server service.
  • Set to "orthanc" if you're using the orthanc service.
• Use linkFields to display a button in the explorer table instead of the study ID as text.

See the portal configuration docs for the latest details.

Submission

Python

# depending on whether you use `dicom-server` or `orthanc`:
endpoint = "<Gen3 portal hostname>/dicom-server/instances"
endpoint = "<Gen3 portal hostname>/orthanc/instances"

gen3_access_token = ""
file_path = ""
if not file_path.lower().endswith(".dcm"):
  raise Exception(f"'{file_path}' is not a DICOM file")

with open(file_path, "r") as f:
  file_contents = f.read()

headers = {
  "Content-Type": "Application/DICOM"
  "Authorization" = f"Bearer {gen3_access_token}"
}
resp = requests.post(endpoint, data=file_contents, headers=headers)
if resp.status_code != 200:
  raise Exception(f"Unable to upload '{file_path}': {resp.status_code} - {resp.text}")

Developer notes

1. Orthanc: We used the jodogne/orthanc image when using PostgreSQL for storage, but when switching to AWS S3 storage, we were not able to get it working with this image, so we switched to the osimis/osiris image. This is why the deployment is different for dicom-server (PostgreSQL) and orthanc (S3).
2. For dicom-server, the authorization checks are in our custom authorization filter.
3. For orthanc, right now the authorization checks are in revproxy. It should still be possible (and is preferable) to add the custom authorization filter above to this server: docs here.
4. About authorization granularity
   • The authorization is currently at the DICOM study ID level, because that's what the DICOM server receives when a user tries to open a file in the DICOM viewer. This means administrators can grant access at the study level (resource: "/services/dicom-viewer/studies/<DICOM study ID>") or grant blanket access (either you have access to see all DICOM files in the DICOM viewer, or you don't have access to see any files) (resource: "/services/dicom-viewer/studies").
   • Some use cases may require the ability to grant access at a different granularity, such as at the program/project level to match other Gen3 services. Some options to enable this:
   • List all the DICOM study IDs in the user.yaml in order to give individual users access to specific studies.
   • Update the DICOM server authorization filter to somehow know the mapping of DICOM study ID to Gen3 program and project. The mapping could be hardcoded, queried from the database through Peregrine or Guppy (preferred option), or directly queried from the database by accessing the Sheepdog database.
     • Caveat: dicom-server uses this filter, but orthanc doesn't. Maybe it could be updated to use the filter (see #3 above).
